What Are The Key Classification Criteria For Flange Types?

Flanges are versatile mechanical components that form the backbone of detachable joints in piping systems across industries, from residential plumbing to heavy-duty industrial setups. With a wide array of flange types available-each tailored to specific operating conditions, pressure levels, and installation needs-understanding how they are classified is essential for selecting the right flange for any application. But what are the key criteria used to classify flange types? How do these criteria influence flange design and performance? Are there secondary classification factors that further refine flange categories? This guide, structured with question-based subheadings, explores the primary and secondary classification criteria for flange types, explaining how each factor shapes flange functionality and suitability, and providing a comprehensive overview tailored to 1200 words for industry professionals and learners in 2026.

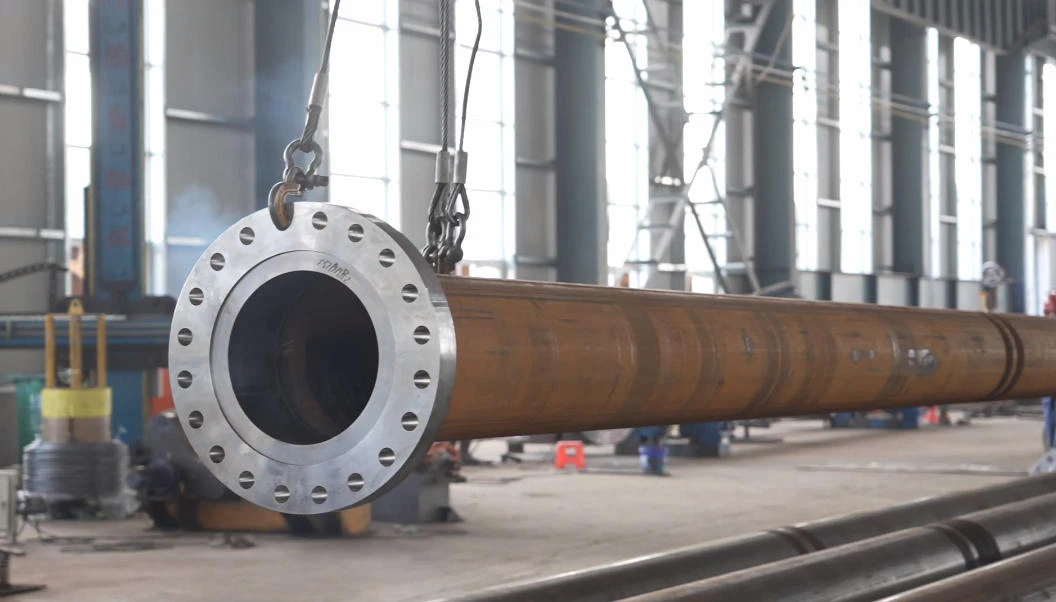

The most fundamental and widely used criterion for classifying flange types is their installation method. This criterion divides flanges into three main categories: welded flanges, bolted flanges, and threaded flanges-each distinguished by how they connect to pipes or equipment, and each suited to different application needs. Installation method directly impacts the flange's strength, leak tightness, and ease of disassembly, making it the starting point for any flange classification.

Welded flanges are permanently attached to pipes via welding, creating a robust joint ideal for high-pressure, high-temperature (HPHT) environments. Common types in this category include weld-neck, slip-on, and socket-weld flanges, each with unique welding requirements and structural designs. Bolted flanges, by contrast, rely on bolts to connect to other flanges or equipment, eliminating the need for welding and enabling easy disassembly. Lap-joint and blind flanges are the most common bolted types, valued for their flexibility in maintenance-heavy applications. Threaded flanges feature internal threads that match pipe threads, allowing for quick, weld-free installation-perfect for low-pressure, small-diameter systems where welding is impractical.

Pressure rating is another core classification criterion, as it defines the maximum pressure a flange can safely withstand without leaking or failing. This criterion is critical because it directly aligns with the operating pressure of the piping system, ensuring the flange can handle the stress of the fluid being transported. Flange pressure ratings are standardized globally, with two primary systems: Class (used in North America, per ASME B16.5) and PN (Pressure Nominal, used in Europe and globally, per ISO 7005).

Class ratings range from Class 150 to Class 2500, with higher numbers indicating higher pressure capacity. For example, Class 150 flanges are suitable for low-pressure systems (e.g., residential water lines), while Class 2500 flanges are designed for extreme HPHT applications (e.g., petrochemical refineries). PN ratings range from PN2.5 to PN400, with PN2.5 for very low pressure and PN400 for high-pressure industrial systems. Pressure rating classification ensures that flanges are matched to the system's pressure requirements, preventing catastrophic failures and ensuring safety.

Flange face design- the surface of the flange that contacts the gasket- is a key classification criterion that impacts seal integrity and compatibility with gaskets. Different face designs are engineered to work with specific gasket materials and pressure/temperature conditions, making this criterion essential for ensuring a leak-tight seal.

The four most common face designs are raised face (RF), flat face (FF), ring-type joint (RTJ), and tongue and groove (T&G). Raised face flanges feature a raised circular area that concentrates pressure on the gasket, making them compatible with most gasket types and suitable for a wide range of pressures. Flat face flanges have a smooth, flat surface, designed for soft gaskets in low-pressure systems (e.g., HVAC lines). Ring-type joint flanges have a groove to hold a metal gasket, creating a metal-to-metal seal ideal for HPHT systems. Tongue and groove flanges feature a tongue on one flange and a groove on the other, ensuring precise alignment and a tight seal for medium-to-high pressure applications. Classifying flanges by face design helps ensure compatibility with gaskets and optimal seal performance.

Material selection is a critical classification criterion, as the flange's material determines its corrosion resistance, temperature tolerance, and strength-key factors in its performance and longevity. Flanges are classified by material into two main categories: metallic and non-metallic, each with subcategories based on specific material properties.

Metallic flanges are the most common, with subcategories including carbon steel, stainless steel, and alloy steel. Carbon steel flanges are cost-effective and suitable for low-to-medium pressure, non-corrosive environments. Stainless steel flanges (e.g., 304/304L, 316/316L) offer exceptional corrosion resistance, making them ideal for marine, chemical, and food processing applications. Alloy steel flanges (e.g., chrome-molybdenum) are designed for high-temperature, high-pressure systems, as they maintain strength under extreme conditions. Non-metallic flanges, such as PVC, PP, and PTFE, are classified for low-pressure, corrosive environments where metal flanges would degrade. Material classification ensures that flanges are matched to the system's fluid type and operating environment.

Beyond the primary criteria (installation method, pressure rating, face design, material), there are secondary classification criteria that further refine flange types, based on specific application needs. These secondary criteria include pipe size, end connection, and special design features, each adding nuance to flange classification.

Pipe size classification ensures that flanges match the diameter of the pipe they connect to, ranging from ½ inch (DN15) for small residential lines to 160 inches (DN4000) for industrial pipelines. End connection classification refers to how the flange attaches to the pipe-e.g., butt-welded (for weld-neck flanges), socket-welded (for socket-weld flanges), or threaded (for threaded flanges). Special design features, such as reducing flanges (for connecting pipes of different sizes) or spectacle blinds (for temporary isolation), are also secondary classification factors, tailored to specific system requirements.

The key classification criteria do not operate in isolation-they work together to guide the selection of the right flange type for a given application. For example, a high-pressure petrochemical system would require a welded flange (installation method), Class 600 or higher (pressure rating), RTJ face design (seal integrity), and alloy steel material (temperature/pressure resistance). A low-pressure residential plumbing system, by contrast, would use a threaded or slip-on flange (installation method), Class 150 (pressure rating), flat face design (gasket compatibility), and PVC or carbon steel material (cost-effectiveness).

Understanding how these criteria interact is essential for avoiding mismatches that could lead to leaks, failures, or increased maintenance costs. By first considering installation method and pressure rating, then refining with face design, material, and secondary criteria, industry professionals can select flanges that meet the unique needs of their piping systems.

In conclusion, the key classification criteria for flange types are installation method, pressure rating, face design, and material, with secondary criteria including pipe size, end connection, and special design features. These criteria collectively define a flange's design, performance, and suitability for specific applications. By understanding how each criterion influences flange functionality, industry professionals can classify and select flanges with confidence, ensuring the safety, reliability, and efficiency of piping systems in 2026 and beyond. Proper classification not only simplifies flange selection but also minimizes risks and maximizes the lifespan of the entire piping system.
