Product introduction
Product Description

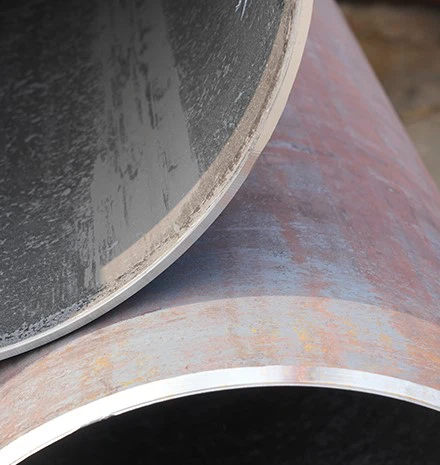

OCTG LSAW Steel Pipe API 5L is a heavy‑duty longitudinal submerged‑arc welded steel pipe designed for oil country tubular goods, oil‑gas well casing, tubing, gathering lines, and wellhead transmission pipelines. Manufactured strictly in accordance with API 5L (PSL1 / PSL2), ISO 3183 and GB/T 9711 standards, it adopts high‑strength low‑alloy steel plates and double‑sided submerged‑arc welding (LSAW) technology. Featuring high yield strength, excellent collapse resistance, strong corrosion resistance, low‑temperature toughness and stable weld quality, this OCTG‑grade LSAW pipe is widely used in onshore and offshore oil‑gas well projects, shale gas development, oil‑gas gathering‑delivery systems and well site pressure piping. It provides reliable long‑term service under high‑pressure, high‑temperature and complex geological conditions for global oil and gas field development.
Basic Product Specifications
Product Name: OCTG LSAW Steel Pipe API 5L
Executive Standard: API 5L PSL1 / PSL2, ISO 3183, GB/T 9711
Manufacturing Process: LSAW (Longitudinal Submerged Arc Welding), plate forming, double‑sided SAW, cold expansion, weld normalization, stress relief
Steel Grade: API 5L X42, X52, X56, X60, X65 (OCTG special grades)
Outer Diameter (OD): 323.9 mm – 1422 mm
Wall Thickness (WT): 10 mm – 40 mm, custom thick‑wall up to 50 mm for deep‑well service
Standard Length: 12 m (main), 6 m optional, custom fixed lengths available
Delivery Condition: Normalized, Quenched & Tempered (Q&T) for high‑strength OCTG service
Surface Finish: Black bare steel with anti‑rust oil; 3PE / FBE anti‑corrosion coating optional
Pipe End: Beveled ends, plain ends, threaded ends (BTC/LC/BC) for OCTG connection
Application: Oil‑gas well casing & tubing, oil‑gas gathering pipelines, wellhead high‑pressure transmission lines, shale gas field pipelines, offshore oil‑gas platform connecting pipes, deep‑well injection pipelines
Grade & Process Explanation
OCTG‑Grade Steel Performance: API 5L X52‑X65 are core grades for OCTG LSAW pipes. X65 grade with minimum yield strength ≥448 MPa offers outstanding collapse resistance and tensile performance, suitable for deep‑well and high‑pressure oil‑gas fields. Strict control of sulfur and phosphorus improves sulfide stress corrosion cracking resistance, adapting to sour gas environments.
LSAW Process for OCTG: Single steel plate forming + double‑sided full‑penetration submerged‑arc welding ensures weld mechanical properties match base metal. Cold expansion optimizes roundness and wall‑thickness uniformity, critical for casing collapse resistance under underground geological pressure. Post‑weld heat treatment eliminates residual stress for long‑term down‑hole service safety.
OCTG Specialized Design: Optimized for well site high‑pressure, impact and corrosion conditions. Strict dimensional tolerance controls guarantee thread machining accuracy. Optional anti‑corrosion coating resists underground water, brine and crude oil corrosion, extending service life in harsh oil‑gas field environments.
Dimensional Tolerance (API 5L PSL2 Standard)
|
Item |
Tolerance |
|
Outer Diameter |
±1.0% of nominal OD |
|
Wall Thickness |
+15% / −12.5% of nominal WT |
|
Out‑of‑Roundness |
≤1.2% of outer diameter |
|
Straightness |
≤2.5 mm per meter |
|
Length |
+300 mm / −0 mm |
Mechanical Properties (API 5L X65 for OCTG Reference)
|
Property |
Standard Requirement |
|
Minimum Yield Strength |
≥448 MPa (X65); ≥360 MPa (X52) |
|
Tensile Strength |
531 – 758 MPa (X65) |
|
Elongation |
≥19% |
|
Hydrostatic Test |
100% tested, no leakage or deformation |
|
Charpy Impact |
≥27 J at 0 °C (PSL2 mandatory) |
|
Collapse Resistance |
Meet API OCTG casing collapse standard |
|
Flattening / Bend Test |
No cracks or weld separation |
Chemical Composition (Max. %, API 5L X65)
|
Element |
C |
Mn |
P |
S |
Si |
|
X65 |
≤0.26 |
≤1.50 |
≤0.030 |
≤0.030 |
≤0.45 |
Residual elements: Cu ≤0.50%, Ni ≤0.30%, Cr ≤0.30%, Mo ≤0.15%. Low‑sulfur low‑phosphorus formula improves anti‑H₂S corrosion performance for sour oil‑gas fields.
Manufacturing Process (LSAW for OCTG)
Raw Material Inspection: High‑strength OCTG‑grade steel plates strictly tested for chemistry and mechanical properties.
Plate Forming: Precision cold forming to ensure uniform wall thickness and high roundness for casing anti‑collapse performance.
Double‑sided LSAW Welding: Full‑penetration welding + weld normalization to match base‑metal performance; 100% UT inspection.
Cold Expansion: Improves circularity and relieves residual stress, enhancing underground pressure resistance.
Heat Treatment: Normalized or quenched‑tempered for high‑strength OCTG service.
NDT Inspection: 100% UT & RT for weld seams, meeting API 5L PSL2 requirements.
Hydrostatic Test: Full‑line pressure testing per API 5L & OCTG standards.
Finishing: Thread processing (BTC/LC), end beveling, anti‑rust treatment, marking, anti‑corrosion coating optional.
Product Advantages
OCTG‑Grade High‑Strength Performance: X52‑X65 high‑strength grades with excellent collapse, tensile and corrosion resistance for deep‑well and sour‑gas oil‑gas fields.
Reliable LSAW Weld Quality: Full‑penetration double‑sided welding, low defect rate, stable performance under long‑term down‑hole pressure.
High‑Precision Dimensional Control: Strict tolerance meets OCTG thread machining requirements for tight connection and sealing.
Strong Geological Adaptability: Resists underground soil pressure, brine corrosion and temperature variation.
Full API 5L Compliance: Strictly certified by API standards, compatible with global oil‑gas field OCTG system specifications.
Complete Traceability: Heat number tracking, MTR reports and third‑party inspection (SGS/BV) available.
Main Applications
Oil‑gas well casing, tubing and liner pipes
On‑shore & offshore oil‑gas gathering and transmission pipelines
Shale gas and unconventional natural gas development pipelines
Wellhead high‑pressure transmission and injection pipelines
Oil‑gas field water injection and gas injection pipelines
Deep‑well and high‑pressure sour‑gas field OCTG projects
Quality Inspection & Certification
Full dimensional inspection of OD, WT, length, straightness and roundness
Tensile, flattening, bend, hydrostatic, impact and collapse‑resistance tests
100% UT + RT weld inspection for PSL2 high‑safety level
Heat‑batch chemical composition analysis
API‑certified Mill Test Report (MTR), third‑party inspection available
Packaging & Delivery
Packaging: Bundled with heavy‑duty steel strips, wrapped in waterproof cloth, steel end caps to protect threaded ends
Marking: API 5L, LSAW, OCTG grade, OD×WT, heat number, batch number, "OCTG Pipe"
Trade Terms: FOB, CIF, CFR, DAP available
Shipping Ports: Tianjin, Qingdao, Shanghai, Ningbo
Customization: Custom wall thickness, thread type, anti‑corrosion coating and lengths supported
Contact Us
For quotation, stock availability, delivery schedule and customized solutions of OCTG LSAW Steel Pipe API 5L, please contact our sales team. We provide API‑certified OCTG‑grade LSAW pipes and professional technical support for global oil‑gas field, deep‑well and unconventional gas development projects.
