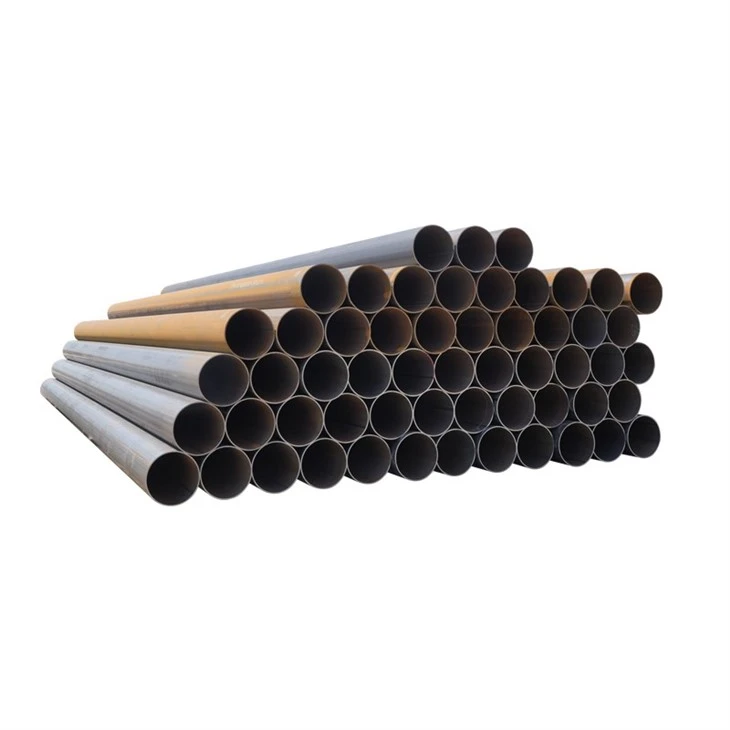

Black Carbon Steel Pipe DN800

Design Pressure: The Primary Driver of Schedule Grade Selection

Design pressure refers to the maximum pressure a pipe system must withstand during operation (including transient pressures such as startup and shutdown). It directly determines the required wall thickness of the pipe: the higher the design pressure, the thicker the wall, and thus the higher the schedule grade.

The relationship between design pressure and wall thickness follows the Barlow's Formula, a core calculation tool in pipe engineering:

T = (P × D) / (2 × S × E)

Where:

T = Minimum required wall thickness (mm)

P = Design pressure (MPa)

D = Outside diameter of the pipe (mm)

S = Allowable stress of the pipe material (MPa, determined by material type and operating temperature)

E = Weld efficiency (related to welding process, e.g., 0.85 for ERW, 0.9 for HFW)

For example, a carbon steel pipe (S = 110 MPa) with NPS 4 (outside diameter 114.3mm) and design pressure of 1.6 MPa requires a wall thickness of ~4.5mm-corresponding to SCH 40. If the design pressure increases to 3.0 MPa, the required wall thickness rises to ~8.5mm, matching SCH 80.

Huayang Steel Pipe strictly applies Barlow's Formula in schedule grade production. For electric resistance welded steel pipe (ERW) used in municipal water supply (design pressure 0.8–1.2 MPa), the company mainly produces SCH 20 and SCH 40 grades; for hfw steel pipe used in oil and gas transmission (design pressure 8–12 MPa), it focuses on SCH 120 and SCH 160 grades, ensuring each product meets pressure requirements.

Nominal Diameter (NPS): Balancing Thickness and Practicality

Nominal diameter (NPS, e.g., NPS 2, NPS 8) is a nominal size representing the pipe's approximate inner diameter, not its actual outer or inner diameter. It influences schedule grade division by affecting the pipe's structural stability and material utilization:

Small-diameter pipes (NPS 1–4): Due to their small outer diameter, even low schedule grades (SCH 20, SCH 40) have sufficient wall thickness to resist pressure. For example, NPS 2 SCH 40 pipe has a wall thickness of 3.91mm, which can withstand 1.6 MPa pressure for carbon steel.

Medium-diameter pipes (NPS 6–12): As diameter increases, the same pressure requires a thicker wall to avoid deformation. Thus, medium-diameter pipes often use SCH 40–SCH 80 grades.

Large-diameter pipes (NPS 14–24): Large-diameter pipes are prone to bending and pressure-induced expansion. High schedule grades (SCH 80, SCH 120) are commonly used to enhance structural strength. For instance, NPS 16 SCH 120 pipe has a wall thickness of 15.88mm, suitable for high-pressure gas transmission.

Huayang Steel Pipe optimizes production based on NPS and schedule grade matching. For small-diameter electric resistance welded steel pipe (NPS 1–4), it uses ERW technology (erw pipe meaning: Electric Resistance Welding, forming steel strips into cylinders and welding via resistance heat) to produce SCH 20–SCH 40 grades; for large-diameter hfw steel pipe (NPS 14–20), it adopts HFW technology (hfw meaning: High-Frequency Welding, using 300–500 kHz current for narrow HAZ welding) to manufacture SCH 80–SCH 160 grades, balancing production efficiency and product performance.
