Hebei Huayang Steel Pipe Co., Ltd is one of the most experienced manufacturers and suppliers of 76-660mm erw welded pipe industrial equipment supporting steel tube in China. Welcome to buy discount 76-660mm erw welded pipe industrial equipment supporting steel tube made in China here from our factory. Quality products and low price are available.
Product introduction
Product Overview

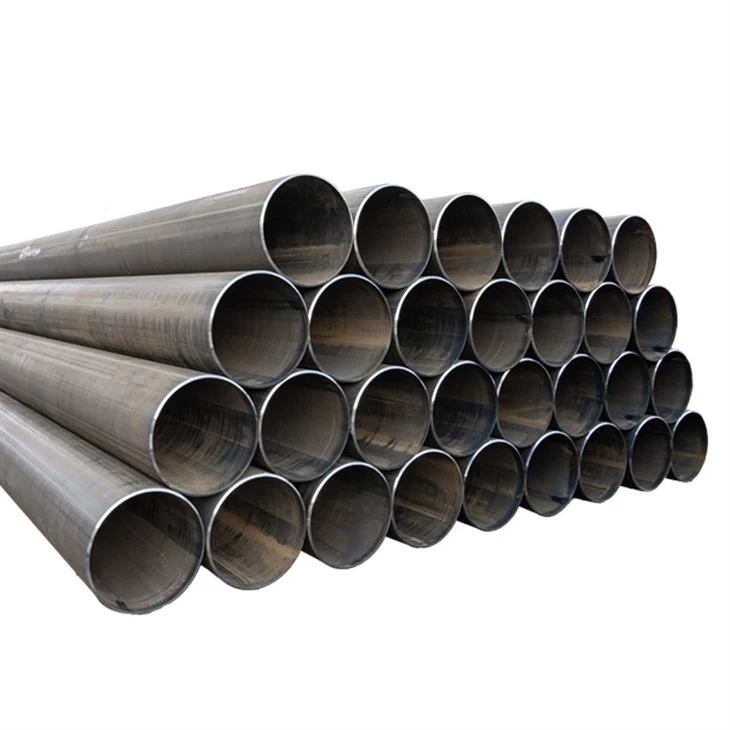

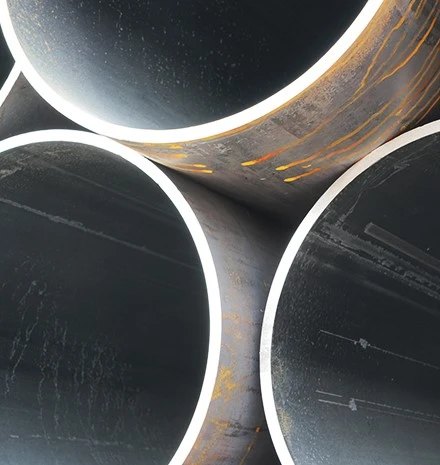

Our 76–660mm ERW electric resistance welded steel pipes are professional heavy-duty supporting steel tubes specially developed for industrial equipment matching and mechanical support systems. Manufactured by mature ERW longitudinal welding technology, this series of steel tubes features stable welding performance, high structural rigidity, precise dimensional accuracy and excellent load-bearing capacity. It perfectly adapts to long-term static load, vibration resistance and mechanical matching requirements of industrial equipment operating environments.
Made of high-quality low-carbon structural steel, the ERW welded pipe ensures uniform material texture and stable mechanical properties. The complete outer diameter range from 76mm to 660mm covers conventional specifications of industrial equipment support legs, chassis brackets, mechanical frames and equipment connecting pipelines. Available with black uncoated, anti-rust oil and galvanized surface treatments, the tubes can be customized in size and processing technology to match different mechanical equipment design standards, widely used in machinery manufacturing, industrial automation equipment, workshop supporting facilities and heavy industrial mechanical projects.
Production Process
High-Quality Steel Raw Material Selection: Adopt standard low-carbon hot-rolled steel coils with stable chemical composition and excellent mechanical toughness, meeting the structural load-bearing standards for industrial mechanical equipment.
Precision Coil Slitting: Steel coils are slit into uniform strips with accurate width to ensure consistent wall thickness and structural balance of finished pipes, avoiding mechanical deviation during equipment assembly.
Multi-Pass Cold Forming: Steel strips are continuously rolled and shaped through precision forming units to guarantee perfect roundness, smooth pipe body and overall structural uniformity.
ERW Electric Resistance Welding: Stable high-speed resistance welding forms uniform straight welds with small heat-affected zone. The weld strength matches the base metal, effectively resisting equipment vibration and mechanical shear force.
Internal and External Weld Bead Polishing: All welding burrs inside and outside the pipe are completely removed to ensure smooth tube surface, no stress concentration, and improve equipment assembly accuracy and structural stability.
Online Sizing & Straightening: Precision sizing and straightening process strictly controls pipe straightness and dimensional tolerance, ensuring high matching accuracy for mechanical equipment installation.
Full-Range Quality Detection: Each steel pipe undergoes eddy current non-destructive flaw detection and hydrostatic pressure test to eliminate welding defects and ensure overall structural safety.
Accurate Fixed-Length Cutting: Support standard 6m/12m lengths and customized 1.5–18m fixed cutting lengths to meet personalized size requirements of different mechanical equipment.
Professional Finishing Treatment: Provide pipe end chamfering, deburring, threading, grooving and anti-rust surface treatment to facilitate on-site equipment assembly and installation.
Batch Mechanical Performance Test: Conduct tensile, bending, flattening and hardness tests on finished products to ensure stable load-bearing and anti-vibration performance for industrial equipment support.
Technical Specifications
Basic Parameters
Product Name: ERW Welded Industrial Equipment Supporting Steel Tube Welding Process: ERW Electric Resistance Longitudinal Welding Applicable Scene: Industrial equipment support, mechanical frame, equipment base and matching structural parts Surface Treatment: Black uncoated, anti-rust oil coating, hot-dip galvanized, customized anti-corrosion treatment Executive Standards: ASTM A53, ASTM A500, BS1387, ISO 65, compliant with industrial mechanical structure standards
Dimension Range
Outer Diameter: 76mm – 660mm Wall Thickness: 2.0mm – 25.4mm, support thick-wall customization for heavy-load equipment Length: Standard 6m/12m random length; customized fixed length 1.5m–18m Tolerance Standard: Strict industrial-grade dimensional tolerance, high roundness and straightness, suitable for precision equipment assembly
Mechanical Properties
Minimum Yield Strength: 290MPa Minimum Tensile Strength: 400MPa Elongation: ≥21% Excellent rigidity, impact resistance and anti-vibration performance, no deformation or cracking under long-term equipment load operation
Core Performance Advantages
Uniform welding structure and strong overall stability, capable of long-term bearing static and dynamic loads of industrial equipment; high dimensional precision ensures accurate assembly and matching; good toughness and ductility adapt to mechanical processing such as cutting, bending and drilling; optional anti-corrosion surface treatment adapts to indoor and outdoor industrial production environments.
Product Advantages
High Load-Bearing Stability: Adopts high-quality structural steel and stable ERW welding process, with uniform pipe body stress. It can stably support heavy industrial equipment and resist long-term mechanical vibration without structural deformation.
High Assembly Precision: Strict dimensional tolerance control and smooth weld polishing ensure high matching accuracy with equipment accessories, reducing on-site assembly errors and improving installation efficiency.
Excellent Mechanical Processability: The steel tube features uniform material and good toughness, supporting secondary processing such as cutting, drilling, bending, welding and threading, fully adapting to equipment personalized processing requirements.
Wide Size Coverage: Complete OD specifications from 76mm to 660mm cover light, medium and heavy industrial equipment supporting pipes, realizing one-stop procurement for mechanical supporting components.
Diversified Customization: Support customized wall thickness, fixed length, pipe end processing and surface anti-corrosion treatment to meet the structural design requirements of different industrial machinery and automation equipment.
Durable & Low Failure Rate: Stable physical and chemical properties, resistant to industrial dust, humidity and conventional atmospheric corrosion, reducing equipment maintenance and replacement frequency.
Cost-Effective Industrial Solution: Factory direct supply with stable quality, suitable for mass supporting use of industrial equipment, effectively reducing overall procurement cost of mechanical structural parts.
Application Fields
Heavy machinery equipment base support and frame structural tubes
Automation production line equipment bracket and supporting structural parts
Industrial workshop equipment fixing frame and platform supporting pipes
Logistics equipment, conveyor machinery and storage equipment supporting tubes
Environmental protection equipment, water treatment equipment matching structural steel pipes
Power equipment, mechanical hardware and industrial accessory supporting pipelines
Custom mechanical supporting tubes for industrial manufacturing and equipment upgrading projects
Packaging & Delivery
All industrial supporting steel tubes are bundled with high-strength steel strips, equipped with plastic protective end caps to prevent pipe end deformation, dust and impurity entry. Custom anti-rust oil coating and special packaging are available for long-distance transportation and humid industrial storage environments. Support FCL container shipment and bulk vessel transportation, suitable for batch delivery of industrial equipment supporting pipe orders. Custom export shipping marks and bundle specifications can be provided according to customer demands.
Quality Assurance & Service
We implement full ISO quality management system throughout the production process of industrial supporting steel tubes. Complete Mill Test Certificates, mechanical performance test reports and NDT inspection records are provided with each batch of goods. Third-party inspections such as SGS and BV are acceptable. We support small-batch trial orders and long-term stable bulk supply for machinery manufacturers, providing one-stop services including technical parameter confirmation, production tracking, quality inspection and complete export document processing.
About us
Hebei Huayang Steel Pipe Co., Ltd. was founded in 2005, with a registered capital of 500 million yuan. The company covers an area of more than 1,000 mu, with annual sales of 10 billion yuan, more than 600 employees and an annual productivity of 2.75 million tons. The company has 17 new automatic steel pipe production lines and 14 high-frequency production lines, with a diameter of 73-660 mm; Three double-sided submerged arc welded steel pipe production lines with diameters of 406.4-1422.4mm;; 24 hot tube expanding production lines, with a diameter of 230-820mm; Two anticorrosion steel pipe production lines with a diameter of 73-1626 mm; 2 automatic painting production lines. With 3 branches and 5 offices, the products are sold to various cities and exported to more than 80 countries such as Southeast Asia, Middle East, Europe and America.
Packaging, transportation and delivery
Packaging, transportation and delivery
At Hebei Huayang Steel Pipe Co., Ltd., we apply standardized and reliable packaging solutions for all our steel pipe products. Our pipes can be securely packed by hexagonal bundling or circular bundling according to product diameter, wall thickness and customer requirements. Each pipe end is protected with high‑strength plastic pipe caps to avoid collision damage, dust and moisture during transportation and storage. The whole bundle is firmly wrapped with durable woven bags to enhance stability and prevent scratches or deformation.
We support a complete range of transportation methods to satisfy global customers, including road transportation, railway transportation, sea freight and container shipping. Based on our strategic location in Cangzhou, Hebei Province, we enjoy convenient access to major ports such as Tianjin Port, which greatly improves logistics efficiency and reduces transportation costs.
For standard specifications and normal order quantities, the general delivery time is about 30 days after order confirmation and deposit receipt. For large‑scale orders, special sizes or customized processing requirements, our production and sales team will formulate a detailed production plan and provide an accurate delivery schedule accordingly to ensure on‑time supply and stable performance for projects and clients worldwide.
Strict quality control
1. During and after the production, experienced quality inspectors randomly check the products to ensure that each steel pipe is qualified for production and application.
2. A nationally recognized laboratory with CNAS certification and certification by French Classification Society.
3. Have CNOOC access certificate, KOC oil company access network, ADNOC Abu Dhabi oil company access network, Petrobras access network, etc.
4. Accept the inspection by the third party designated/paid by the buyer, such as SGS and BV.
Certifications
API 2B
API 5L
GOST
ISO 9001
EN 10219
EN 10210
