Product introduction
Product Description

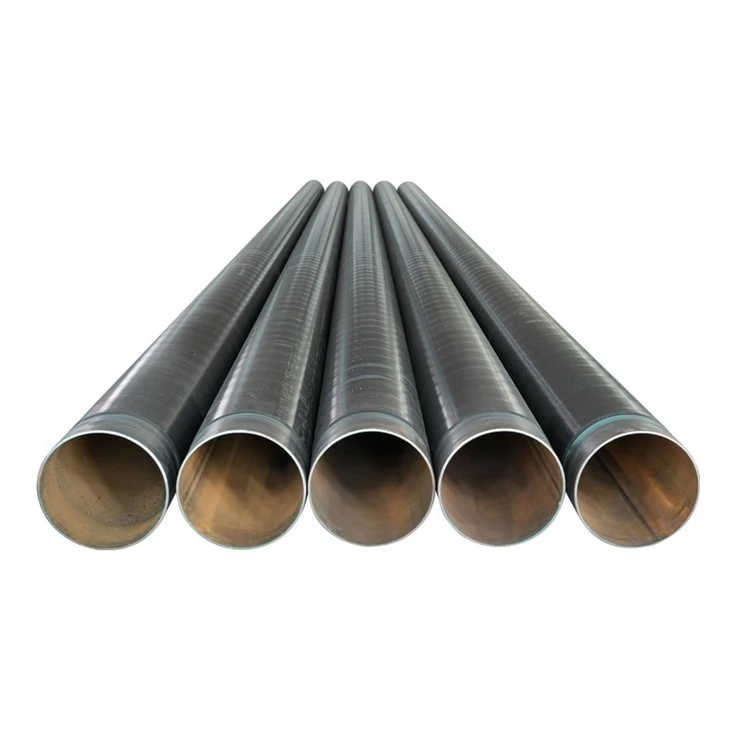

ERW Steel Pipe with 3PE/FBE Anti-corrosion Coating adopts high-frequency electric resistance welding (ERW) steel pipe as the base material, equipped with two mainstream anti-corrosion solutions: 3-layer polyethylene (3PE) and fusion bonded epoxy (FBE) coating. Manufactured in accordance with API 5L, GB/T 9711, GB/T 23257, ISO 21809 series standards, the base pipe features high dimensional accuracy, uniform wall thickness and excellent weld integrity. After strict surface pretreatment and professional coating construction, the finished pipe combines the mechanical strength of ERW pipe and outstanding anti-corrosion performance of 3PE/FBE layers.
3PE coating delivers superior impact resistance, water isolation and soil corrosion resistance, ideal for general buried pipelines. FBE coating boasts excellent chemical resistance, strong adhesion and stable cathodic disbondment performance, perfectly suitable for chemical, marine and other highly corrosive harsh environments. This dual-option product is widely applied in oil & gas transmission, municipal engineering, water supply and drainage, industrial fluid delivery, underground pipe networks and other fields. It is a cost-effective and versatile anti-corrosion pipeline choice for various engineering projects worldwide.
Basic Product Specifications
Product Name: ERW Steel Pipe with 3PE/FBE Anti-corrosion Coating
Executive Standards: API 5L, GB/T 9711, GB/T 23257, SY/T 0413, ISO 21809-1, ISO 21809-2, AWWA C213
Base Pipe Technology: ERW (Electric Resistance Welding)
Steel Grades: Q235B, Q355B, S275JR, S355JR, API 5L Gr.B, X42, X52, X60
Outer Diameter (OD): 21.3mm – 630mm, customized non-standard sizes available
Wall Thickness (WT): 2.5mm – 20mm, thick wall for high-pressure working conditions
Standard Length: 6m, 9m, 12m, custom fixed lengths are acceptable
Coating Options
3PE Anti-corrosion System
FBE Primer: 80~150μm
Adhesive Layer: 170~250μm
HDPE Topcoat: 2.0~4.0mm
FBE Anti-corrosion System
Single-layer fusion bonded epoxy: 300~500μm (standard 350μm)
Pipe End Treatment: 30°~45° beveled ends for field welding; plain, threaded or flanged ends optional; anti-corrosion edge sealing and plastic protective caps
Application: Oil & gas gathering lines, municipal buried pipelines, water supply & drainage pipelines, industrial circulating water pipelines, coastal & saline-alkali land pipelines, chemical medium transmission pipelines
Product Features & Coating Advantages
Advantages of ERW Base Pipe
High-frequency ERW technology ensures smooth weld seam, stable mechanical performance and precise dimensional tolerance. Compared with other pipe types, ERW steel pipe has high cost performance, uniform roundness and straightness, convenient cutting and on-site installation. After post-weld stress relief and 100% non-destructive testing, the pipe body is free from cracks, porosity and other defects, fully meeting the load-bearing and pressure-bearing requirements of conventional and medium-pressure pipeline projects.
3PE Coating Performance
Three-layer polyethylene composite coating forms a dense protective structure. It has excellent waterproof permeability, anti-soil extrusion, anti-gravel impact and aging resistance. It can resist the erosion of groundwater, soil and microorganisms, with a service life up to 50 years for long-term buried use. It is well compatible with cathodic protection systems, and the coating will not peel or delaminate under long-term buried stress.
FBE Coating Performance
Fusion bonded epoxy coating is formed by high-temperature curing, featuring ultra-strong adhesion with steel substrate. It shows prominent resistance to acid, alkali, salt and various chemical solvents, and excellent cathodic disbondment resistance. The coating is thin but dense, suitable for narrow construction spaces, high-temperature working conditions and severely corrosive environments such as chemical plants and marine projects. The service life can reach more than 35 years in harsh conditions.
Dimensional & Coating Tolerance
|
Inspection Item |
Standard Tolerance |
|
Outer Diameter |
±0.75% of nominal OD |
|
Wall Thickness |
+15% / −12.5% of nominal WT |
|
Out-of-Roundness |
≤1.0% of outer diameter |
|
Straightness |
≤1.5mm per meter |
|
Pipe Length |
+150mm / −0mm |
|
3PE Total Thickness |
2.0~4.0mm |
|
FBE Coating Thickness |
300~500μm |
Mechanical Properties of ERW Base Pipe
|
Steel Grade |
Minimum Yield Strength |
Tensile Strength |
Minimum Elongation |
Hydrostatic Test |
|
Q235B |
≥235MPa |
375~500MPa |
≥26% |
100% tested at 1.5× working pressure |
|
Q355B |
≥355MPa |
470~630MPa |
≥21% |
100% tested at 1.5× working pressure |
|
API 5L X52 |
≥359MPa |
455~620MPa |
≥20% |
100% tested at 1.5× working pressure |
Note: Low-temperature impact test can be provided for pipelines used in cold regions. All finished pipes pass strict flattening and bending tests without cracking.
Manufacturing Process
Raw Material Inspection: Check chemical composition and mechanical properties of steel strip to ensure compliance with standards.
ERW Forming & Welding: Continuous rolling forming, high-frequency welding, weld trimming and online cooling.
Post-processing: Stress relief treatment, pipe end cutting, straightening and sizing.
Full Inspection: 100% ultrasonic non-destructive testing for welds and full-line hydrostatic pressure test.
Surface Pretreatment: Shot blasting to Sa2.5 grade, remove rust, oxide and oil stains to improve coating adhesion.
Coating Construction: Select 3PE or FBE coating process according to requirements, complete high-temperature curing and forming.
Coating Testing: 100% spark leak detection, thickness test, impact and adhesion test.
Finishing & Packaging: Pipe end sealing, marking, installing protective caps and bundling.
Quality Inspection & Certification
Full dimensional inspection of outer diameter, wall thickness, straightness and length
Mechanical performance tests: tensile, bending, flattening, hydrostatic pressure and low-temperature impact test
100% ultrasonic testing for ERW weld seams
Professional tests for 3PE/FBE coating: spark detection, thickness, adhesion, impact resistance and cathodic disbondment
Complete Mill Test Report (MTR) provided
Support third-party inspection: SGS, BV, DNV and other authoritative institutions
Packaging & Delivery
Packaging: Wrapped with anti-corrosion PE film, bundled with high-strength steel strips, covered with waterproof woven cloth; both ends equipped with plastic protective caps to prevent coating damage.
Product Marking: Product name, steel grade, specification, coating type, executive standard, batch number and production date.
Trade Terms: FOB, CIF, CFR, DAP, supporting global transportation.
Shipping Ports: Tianjin, Qingdao, Shanghai, Ningbo.
Customization: Custom steel grade, size, length, coating type and pipe end form as required.
Product Advantages
Dual Coating Selection: Choose 3PE for conventional buried projects or FBE for high-corrosion environments, flexible to match different working conditions.
Reliable ERW Base Pipe: Mature high-frequency welding technology, stable quality and high installation efficiency.
Excellent Anti-corrosion Performance: Two professional anti-corrosion systems meet long-term service requirements of multiple scenarios.
High Cost Performance: Balanced quality and price, ideal for large-scale municipal and industrial pipeline projects.
Strict Quality Control: Full-process inspection from raw materials to finished products, fully compliant with international standards.
Wide Adaptability: Suitable for buried, outdoor, chemical, coastal and various complex environments.
Main Applications
Oil and gas gathering pipelines and auxiliary pipeline networks
Urban municipal underground comprehensive pipe galleries, water supply and drainage pipelines
Industrial park circulating water, sewage and process fluid pipelines
Coastal areas, saline-alkali land and wetland buried pipelines
Chemical plant corrosive medium transmission pipelines
Fire protection, heating and other supporting engineering pipelines
